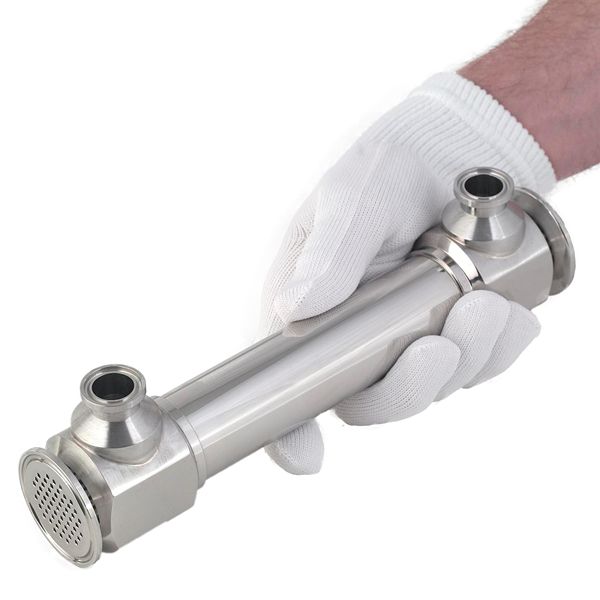

  • 35 Series Double Tubesheet Sanitary Heat Exchanger
Shell Diameter: 1.50 in. (38 mm)
Transfer Area: 1.34 to 5.83 ft² (0.12 to 0.54 m²)
Tube Side Pressure Rating: 1200 psi (83 bar)
Shell Side Pressure Rating: 800 psi (55 bar)
1 - 44 of 44 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Tube Length (in.)

Tube Length (mm)

Tube Outer Diameter (in.)

Tube Outer Diameter (mm)

Model #

Tube Sheet Type

Tube Length

Tube Outer Diameter

Product Contact Surface Finish

N/A Double N/A 10.00 in.254 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 15.00 in.381 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 20.00 in.508 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 25.00 in.635 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 30.00 in.762 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 10.00 in.254 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 15.00 in.381 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 20.00 in.508 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 25.00 in.635 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 30.00 in.762 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 10.00 in.254 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 15.00 in.381 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 20.00 in.508 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 25.00 in.635 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 30.00 in.762 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 10.00 in.254 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 15.00 in.381 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 20.00 in.508 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 25.00 in.635 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 30.00 in.762 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 10.00 in.254 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 15.00 in.381 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 20.00 in.508 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 25.00 in.635 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 30.00 in.762 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 10.00 in.254 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 15.00 in.381 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 20.00 in.508 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 25.00 in.635 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 30.00 in.762 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 10.00 in.254 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 15.00 in.381 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 20.00 in.508 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 25.00 in.635 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 30.00 in.762 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 10.00 in.254 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 15.00 in.381 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 20.00 in.508 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 25.00 in.635 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 30.00 in.762 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 40.00 in.1016 mm N/A 0.094 in.2.4 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 40.00 in.1016 mm N/A 0.094 in.2.4 mm N/A SF1: 20 µin (0.5 µm) Ra Max
N/A Double N/A 40.00 in.1016 mm N/A 0.125 in.3.2 mm N/A SF4: 15 µin (0.4 µm) Ra Max, Electropolished
N/A Double N/A 40.00 in.1016 mm N/A 0.125 in.3.2 mm N/A SF1: 20 µin (0.5 µm) Ra Max
